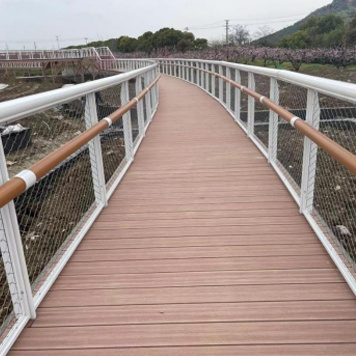

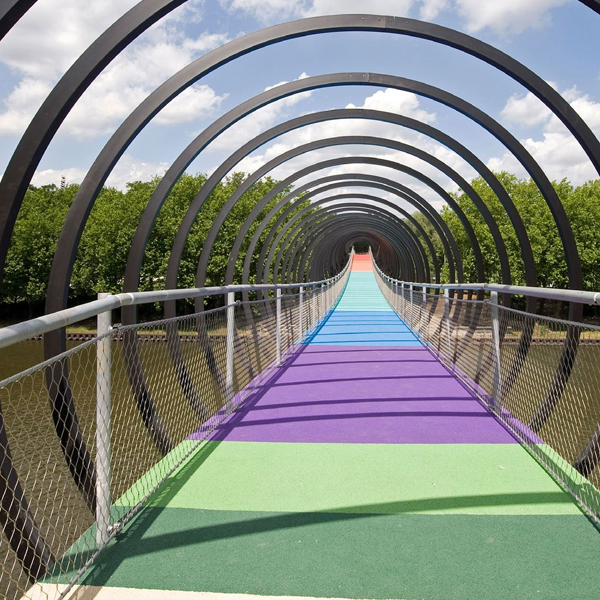

The Stainless Steel helicopter deck safety mesh, the wire ropes are neither knotted nor crossed, it is a construction based on stainless steel wire ropes that lie parallel in pairs connected and reciprocally curved by stainless steel ferrules. Rope Mesh Description is custom manufactured to in widths and lengths to suit your balustrade, railing or architectural application. Diagonal and irregular shapes can also be supplied.
Material:stainless steel ,304,316 grade
Ferrule Material:Copper Ferrule,Aluminum Ferrule, Stainless steel Ferrule

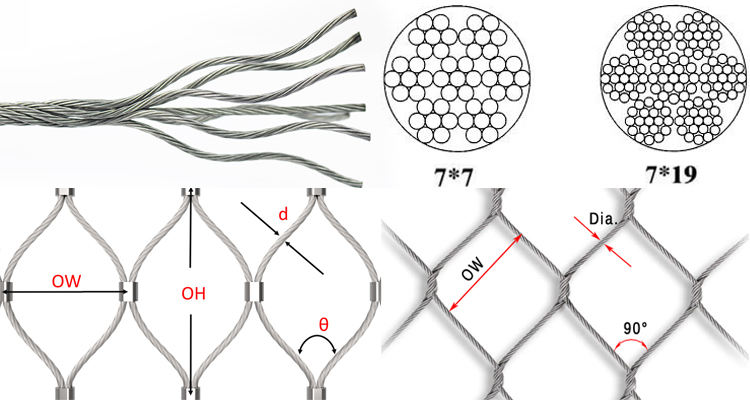

Rope:stainless steel 7 x 7 and 7 x 19.
Rope wire diameter :1.5mm,2.0mm,2.5 mm3.0mm,4.0mm 6.0 mm etc
Mesh aperture: 25x25mm 30x30mm 35x35mm 40x40mm 50x50mm 60x60mm 80x80mm 100x100mm 150x150mm 200mmx200mm 300x300mm etc.
Height: general 0.5-20meter
Length: general 0.5-30meter
Specification List:
Anping XinNan Metal Wire Mesh Co.,Ltd | ||||||
Mesh Aperture | Wire diameter | |||||
OW X OH (mm) | Inch | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
3/64" | 1/16" | 5/64" | 1/8" | 0.157" | ||
20 x 35 | 4/5×1.39 | XN1220 | ||||
25.4 x 44 | 1×1.73 | XN1225 | XN1525 | |||
35 x 61 | 1.37×24 | XN1235 | XN1535 | XN2035 | ||
38 x 65.8 | 1-1/2×2.6 | XN1235 | XN1538 | XN2038 | XN3038 | |
51 x 88.3 | 2×3.46 | XN1251 | XN1551 | XN2051 | XN3051 | XN4051 |
60 x 105 | 2.4×4.16 | XN1260 | XN1560 | XN2060 | XN3060 | XN4060 |
76 x 131.6 | 3×5.2 | XN1276 | XN1576 | XN2076 | XN3076 | XN4076 |
90 x 156 | 3.5×6.15 | XN1290 | XN1576 | XN2090 | XN3090 | XN4090 |
102 x 176.7 | 4×6.9 | XN20100 | XN15100 | XN20100 | XN30100 | XN40100 |
120 x 210 | 4.75×8.23 | XN12120 | XN15120 | XN20120 | XN30120 | XN40120 |
160 x 280 | 6.3 x 11 | XN12160 | XN15160 | XN20160 | XN30160 | XN40160 |
180 x 315 | 7.08 x 12.4 | XN12180 | XN15180 | XN20180 | XN30180 | XN40180 |
200 x 350 | 7.87 x 13.78 | XN12200 | XN15200 | XN20200 | XN30200 | XN40200 |
250 x 450 | 9.84 x 17.7 | XN12250 | XN15250 | XN20250 | XN30250 | XN40250 |
300 x 525 | 11.8 x 20.67 | XN12300 | XN15300 | XN20300 | XN30300 | XN40300 |
Characteristics:
1. Made of high quality stainless steel wire rope
2. Soft to the touch, can't hurt hands.
3.. Light weight, but strong
4. Life span more than 30 years
5. Environmental degradation resistant, say, corrosion, ultraviolet
6. Excellent flexibility for tough installations
Usage:

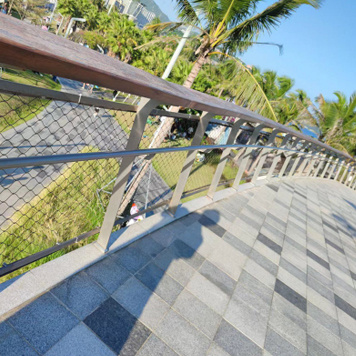

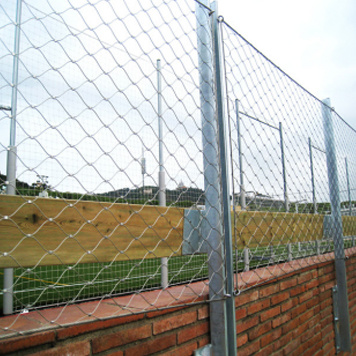

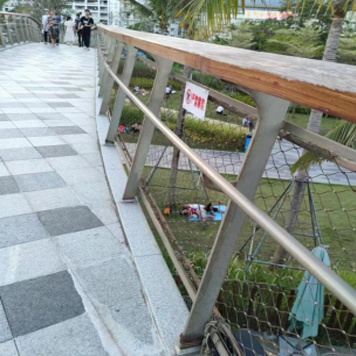

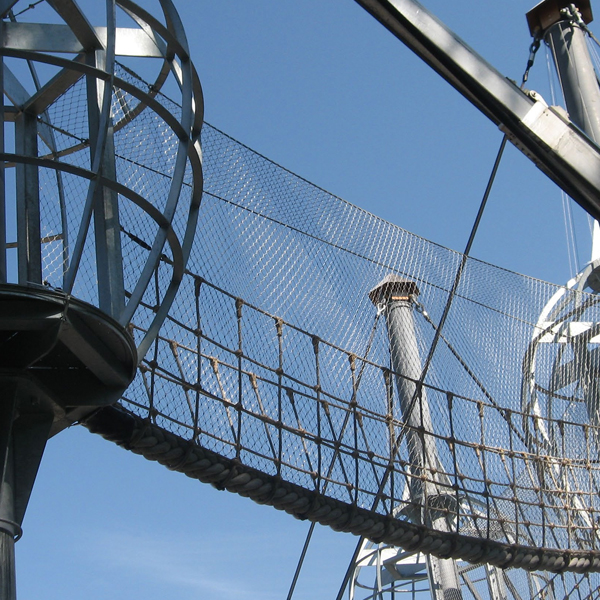

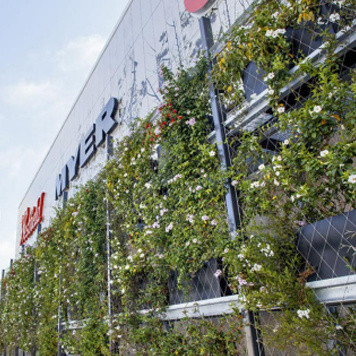

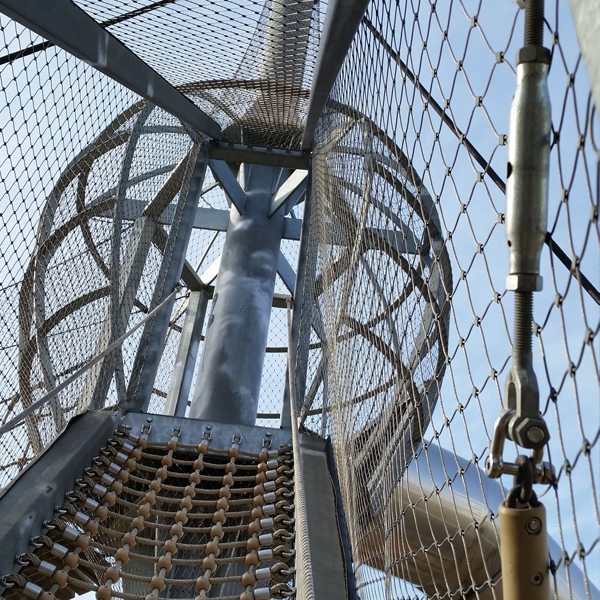

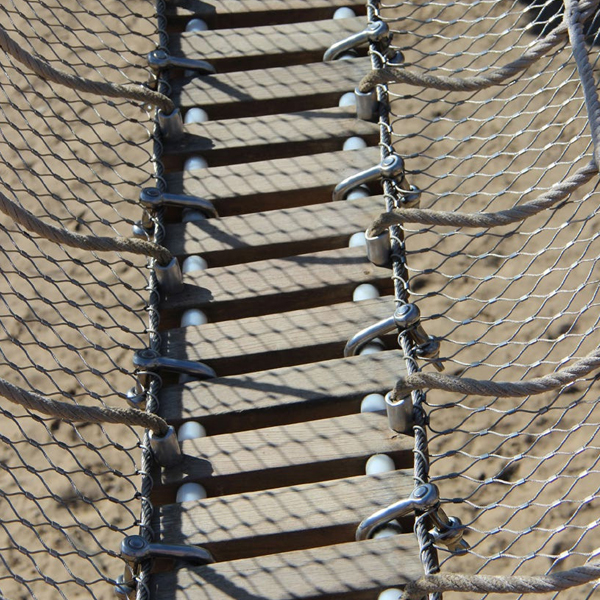

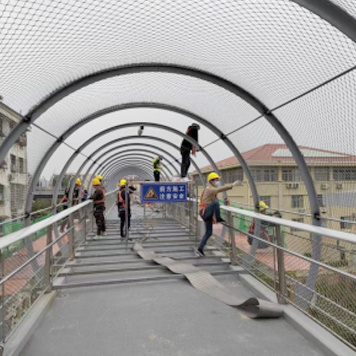

rope Ferrule Mesh is widely used as Stainless Steel Garden Trellis,Plant Trellis, Flex Mesh Green Wall,Stainless Steel Fencing,ceilings, banister fillings, stair protections, mesh fence and so on.
