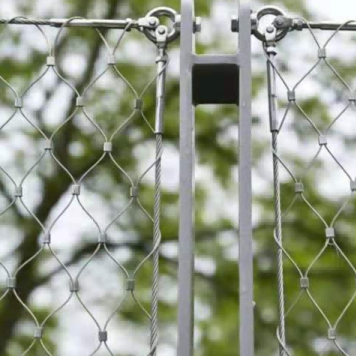

Ball Catch Mesh fence is also known as safety netting system. It is widely used in slope reinforcement.The system,mainly made up of rope wire ,enjoy the basic functions to cover (initiative protection) and intercept (passive protection) so as to defend various geological disasters.
Material:stainless steel ,304,316 grade
Ferrule Material:Copper Ferrule,Aluminum Ferrule, Stainless steel Ferrule

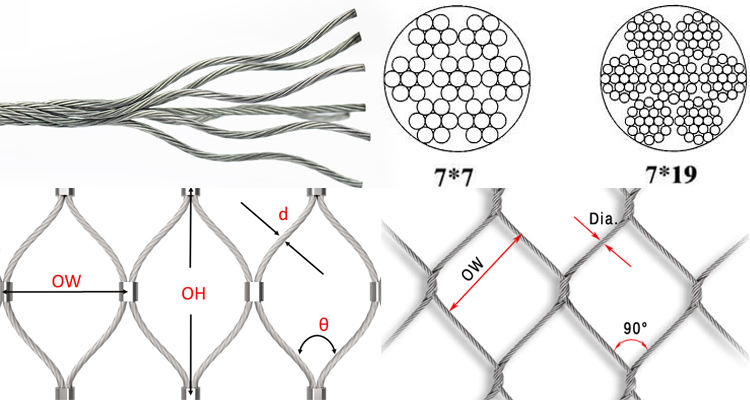

Rope:stainless steel 7 x 7 and 7 x 19.
Rope wire diameter :1.5mm,2.0mm,2.5 mm3.0mm,4.0mm 6.0 mm etc
Mesh aperture: 25x25mm 30x30mm 35x35mm 40x40mm 50x50mm 60x60mm 80x80mm 100x100mm 150x150mm 200mmx200mm 300x300mm etc.
Height: general 0.5-20meter
Length: general 0.5-30meter
Specification List:
Anping XinNan Metal Wire Mesh Co.,Ltd | ||||||
Mesh Aperture | Wire diameter | |||||
OW X OH (mm) | Inch | 1.2 mm | 1.5 mm | 2.0 mm | 3.0 mm | 4.0 mm |
3/64" | 1/16" | 5/64" | 1/8" | 0.157" | ||
20 x 35 | 4/5×1.39 | XN1220 | ||||
25.4 x 44 | 1×1.73 | XN1225 | YT1525 | |||
35 x 61 | 1.37×24 | XN1235 | YT1535 | YT2035 | ||
38 x 65.8 | 1-1/2×2.6 | XN1235 | XN1538 | XN2038 | XN3038 | |
51 x 88.3 | 2×3.46 | XN1251 | XN1551 | XN2051 | XN3051 | XN4051 |
60 x 105 | 2.4×4.16 | XN1260 | XN1560 | XN2060 | XN3060 | XN4060 |
76 x 131.6 | 3×5.2 | XN1276 | XN1576 | XN2076 | XN3076 | XN4076 |
90 x 156 | 3.5×6.15 | XN1290 | XN1576 | XN2090 | XN3090 | XN4090 |
102 x 176.7 | 4×6.9 | XN20100 | XN15100 | XN20100 | XN30100 | XN40100 |
120 x 210 | 4.75×8.23 | XN12120 | XN15120 | XN20120 | XN30120 | XN40120 |
160 x 280 | 6.3 x 11 | XN12160 | XN15160 | XN20160 | XN30160 | XN40160 |
180 x 315 | 7.08 x 12.4 | XN12180 | XN15180 | XN20180 | XN30180 | XN40180 |
200 x 350 | 7.87 x 13.78 | XN12200 | XN15200 | XN20200 | XN30200 | XN40200 |
250 x 450 | 9.84 x 17.7 | XN12250 | XN15250 | XN20250 | XN30250 | XN40250 |
300 x 525 | 11.8 x 20.67 | XN12300 | XN15300 | XN20300 | XN30300 | YT40300 |
Application:

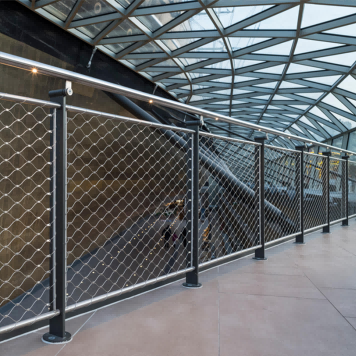

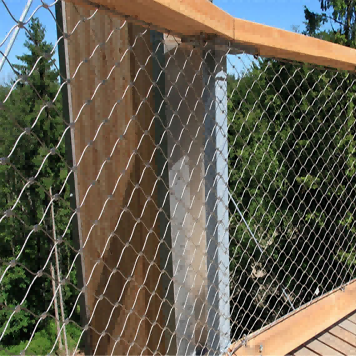

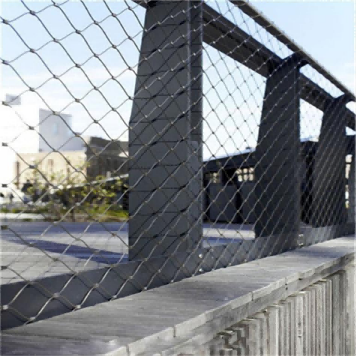

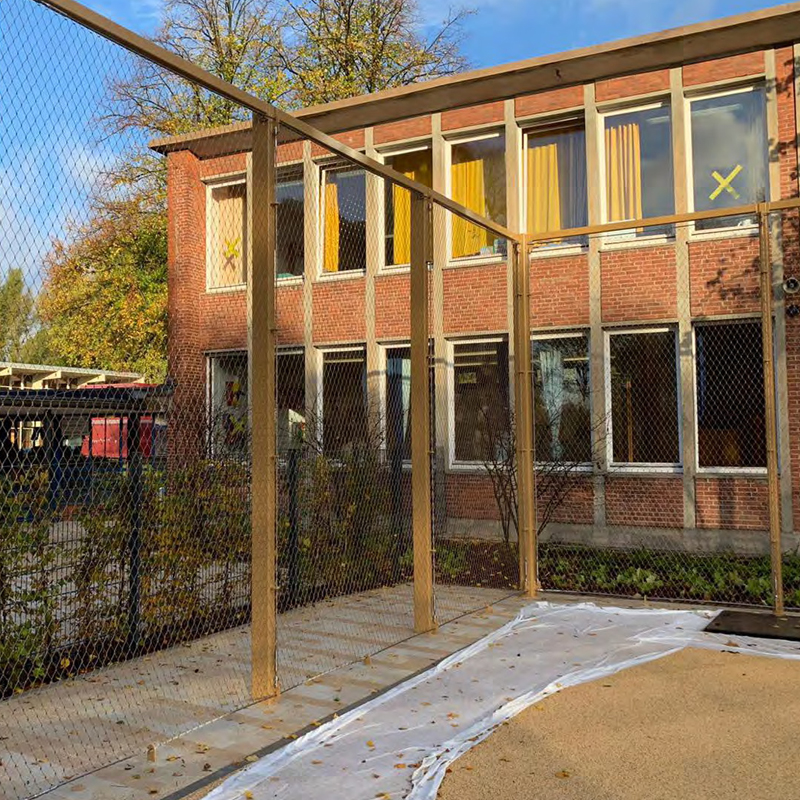

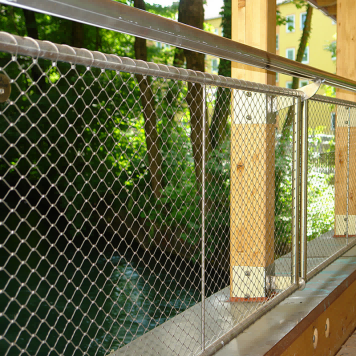

It widely used in the following areas: Fence, Garden fence, Aviary Mesh, Bird Netting,Animal Enclosure, Zoo Mesh,Agriculture,Residential Fence, stair railing, balustrade infill, architectural surface plant climbing net, Etc.

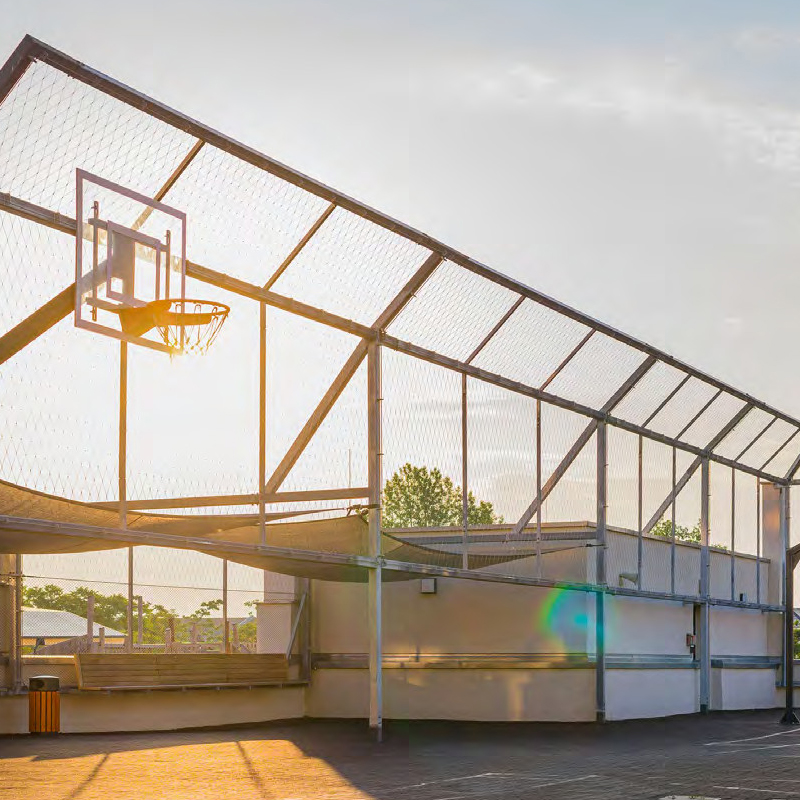

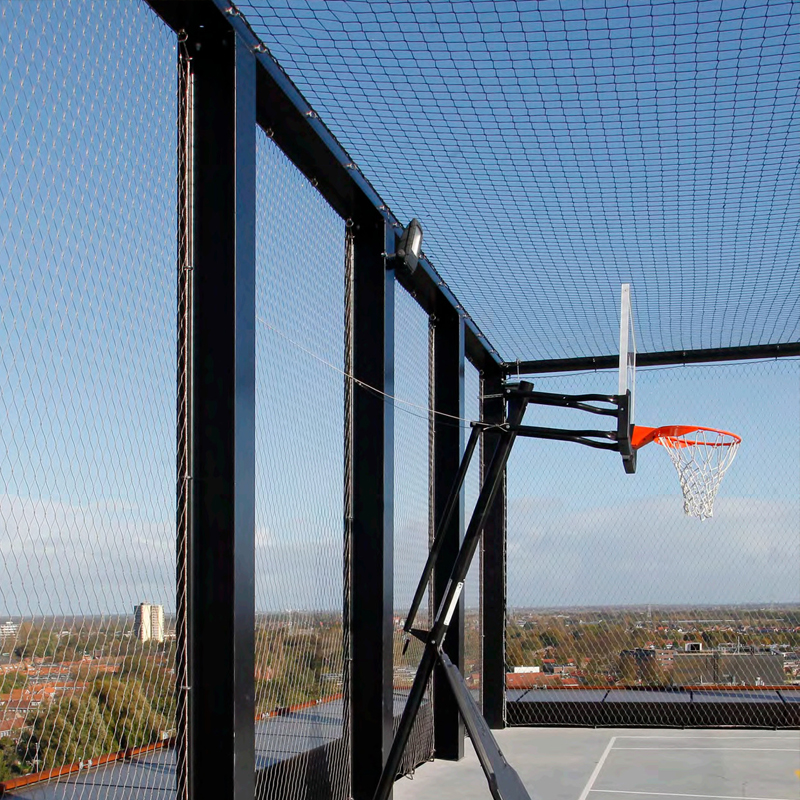

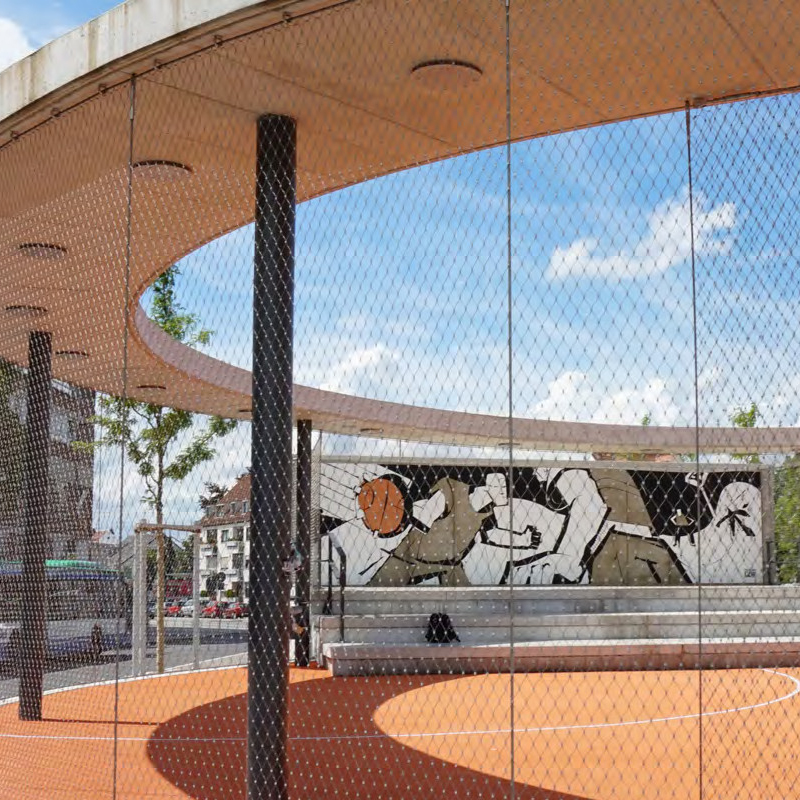

In addition, Stainless steel wire rope fence mesh also applies to various fields of sports, acrobatics, home decoration, building decoration.
